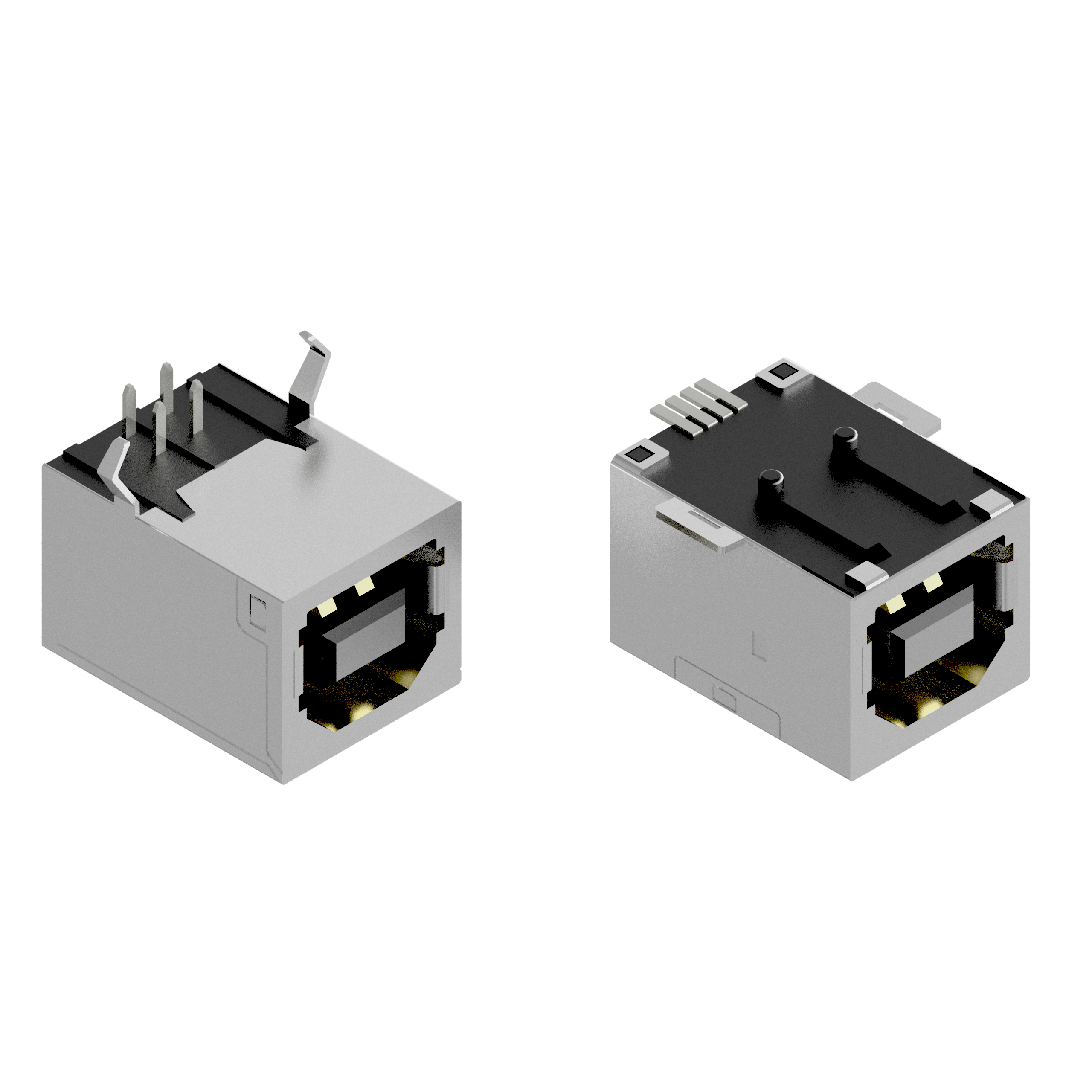

USB Type B “standard version”
USS-W04-XBxx-9x
“Side- and top entry”. Through-hole soldering and SM technology. The Through-hole soldering version also in low profile. The SMT side entry also called “2.0 Type”. All versions completely shielded.
| Design | Single port 90° vertical, single port 90° vertical low profile, single port top entry |
|---|---|
| Type | SMT, THT |
| Design | Type | Item number | Downloads |
|---|---|---|---|
| Single port 90° vertical | THT | USS-W04-RBx1-9x | |
| single port 90° vertical low profile | THT | USS-W04-RBSx-9x | |
| single port top entry | THT | USS-W04-TBx1-9x | |
| single port top entry | SMT | USS-W04-UBx1-9x | |
| Single port 90° vertical | SMT | USS-W04-SBSx-9x |
