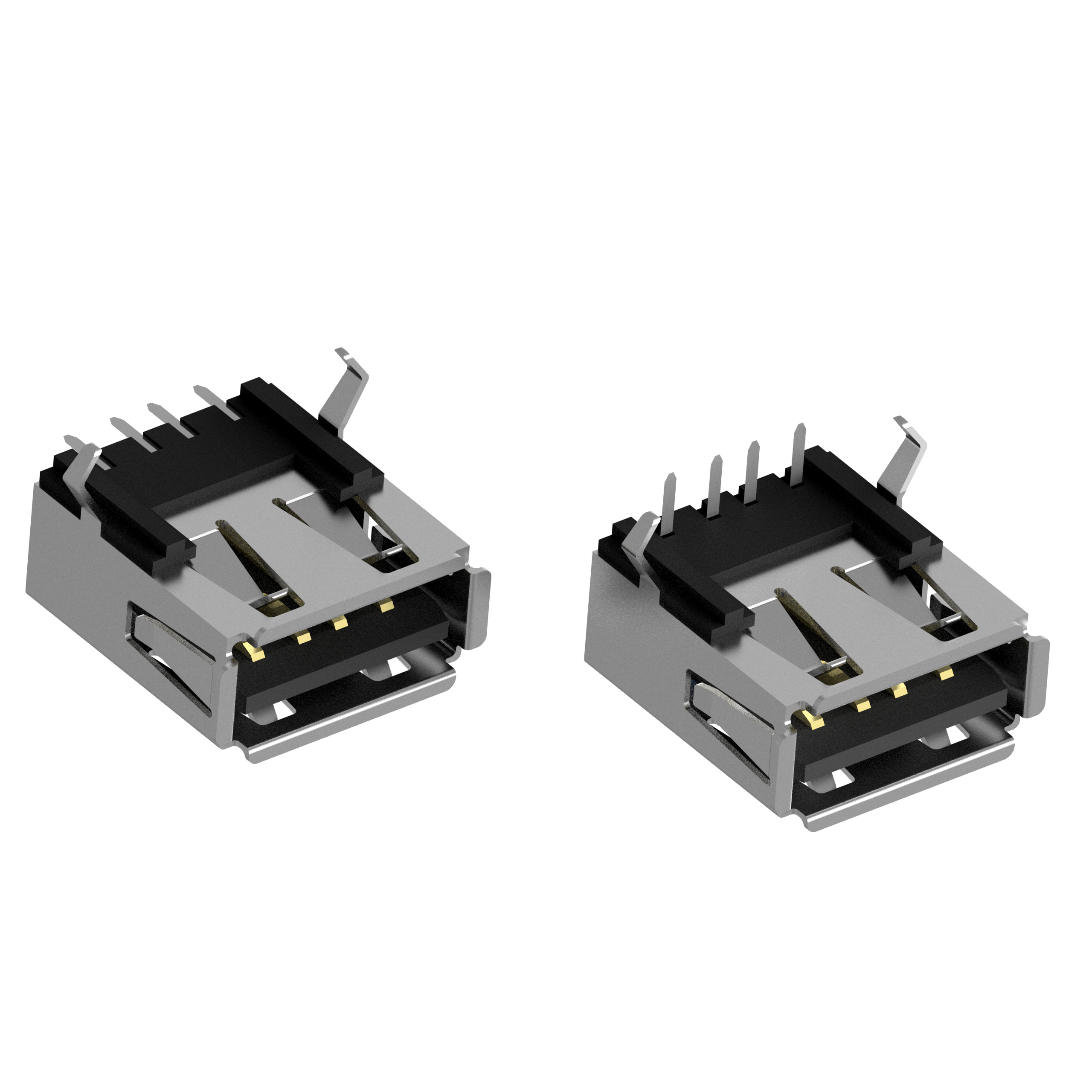

USB 1.x/2.0 Type “A” single port “standard version”
UXS-W04-XAXx-9x
Single port as “side- (right angle), top- and vertical entry”. In Through-hole soldering and SM technology as well as in low profile design. The versions “single port right angle soldertail” and “single port vertical soldertail” are completely shielded, all others are not on the back side. NEW is a USB type “A” with front grounding latch.
| Design | Single port 90° vertical, Single port 90° vertical embedded, single port 90° vertical low profile, single port top entry, Single port upright |
|---|---|
| Type | SMT, THT |
| Design | Type | Item number | Downloads |
|---|---|---|---|
| Single port 90° vertical | THT | USS-W04-RAx1-9x | |
| single port 90° vertical low profile | THT | ULS-W04-RASx-9x | |
| Single port 90° vertical | SMT | USS-W04-SASx-9x | |
| Single port 90° vertical embedded | SMT | ULS-W04-SASx-9x | |
| single port top entry | THT | USS-W04-TAx1-9x | |
| Single port upright | THT | USS-W04-VAx1-9x |
