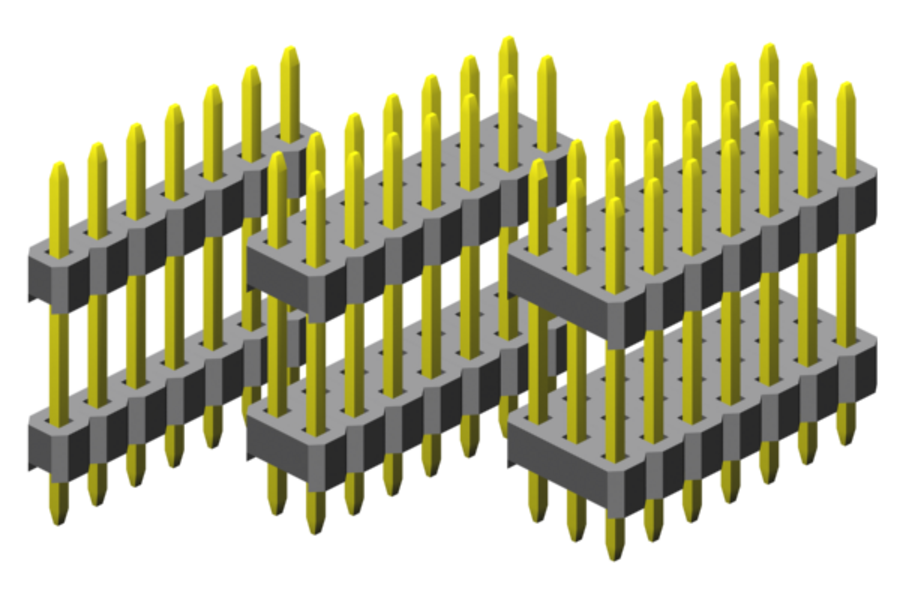

Through-hole soldering (THT) – double plastic board spacer pin headers
SPx-xxx-Xxxx/x-xx/xx
Single row, double row and three rows with a variety of standard dimensions of the soldering and plug side. Obviously, customer-specific dimensions are possible. Details and dimensions applied for your “Design-In” you will find on the pages with “additional data”.
| Pitch | 1.00mm, 1.27mm, 1.27mm x 2.54mm, 2.00mm, 2.54mm |
|---|
| Pitch | Item number | Downloads |
|---|---|---|
| 1.00mm | SP2-xxx-H51/x-xx/00X | |
| 1.27mm | SPx-xxx-Xxxx/x-xx/11 | |
| 1.27mm x 2.54mm | SPx-xxx-Sxxx/xx-xx/1 | |
| 2.00mm | SPx-xxx-Xxxx/xx-xx/2 | |
| 2.54mm | SPx-xxx-Sxxx/xx-xx |
