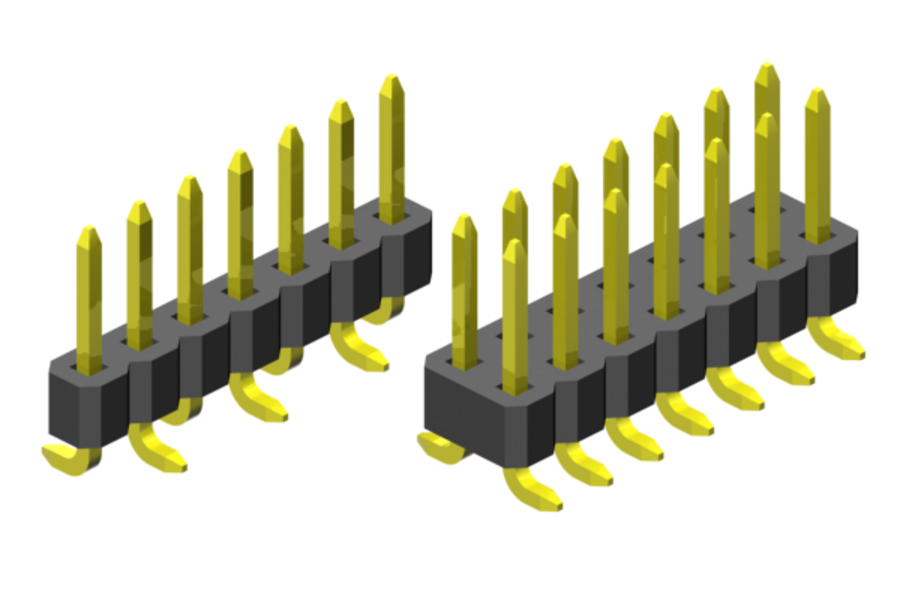

Surface-mount soldering (SMT) – vertical pin headers
SP2-xxx-H51/x-55/xx X
Single row and double row with a variety of standard dimensions of the height and plug side. Obviously, customer-specific dimensions are possible. Details and dimensions applied for your “Design-In” you will find on the pages with “additional data”.
| Pitch | 1.00mm, 1.27mm, 1.27mm x 2.54mm, 2.00mm, 2.54mm |
|---|
| Pitch | Item number | Downloads |
|---|---|---|
| 1.00mm | SS2-xxx-H18/x-xx/00X | |
| 1.27mm | SS2-xxx-Hxx/x-xx/11X | |
| 1.27mm x 2.54mm | SSx-xxx-H38x/x-xx/1X | |
| 2.00mm | SS2-xxx-Hx85/x-xx/2X | |
| 2.00mm | SS2-xxx-HX0xx/x-xx/2X | |
| 2.54mm | SSx-xxx-X14x/xx-xxX |
