Ultra Slim Profile 90°- SMT
SSX-0XX-XXX8-xx/N

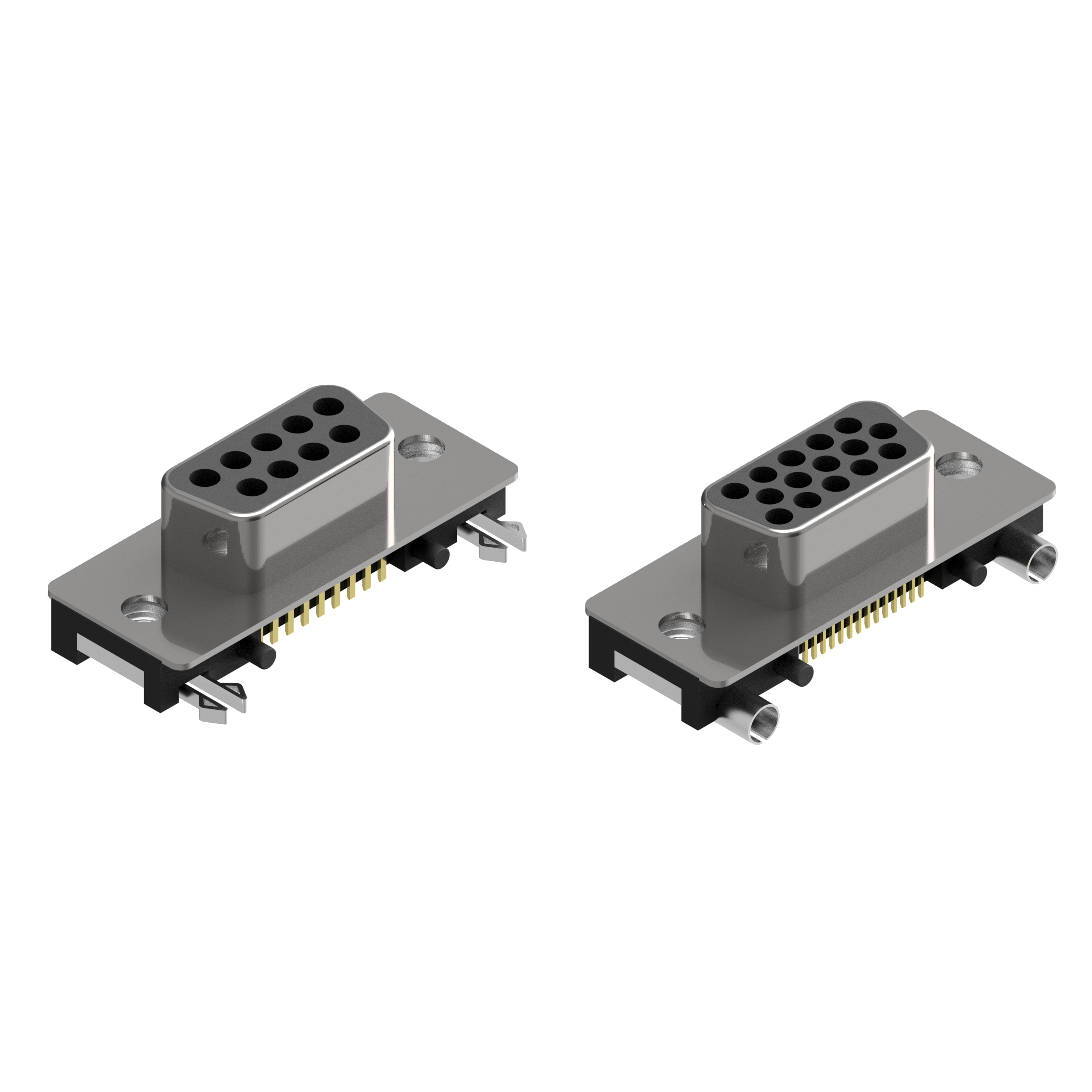

Standard-type with a depth of only 4.00mm: “female” 9-, 15- and 25-pin, “male” 9-pin “High Density”-type with a depth of only 4.60mm: “female” 15-pin. All versions available as “Wave Solder”- or “Pin-In-Paste”-Technology.
| Pins | 15-pins (female), 15-pins (Pin-in-Paste), 25-pins (female), 9 pin (male), 9- pin (female) |
|---|
| Pins | Artikelnummer | Downloads |
|---|---|---|
| 9- pin (female) | SSF-009-U908-xx/X | |
| 9 pin (male) | SSM-009-U908-xx/X | |
| 15-pins (female) | SSF-015-HU98-xx/X | |
| 15-pins (Pin-in-Paste) | SSF-025-U908-xx/X | |
| 25-pins (female) | SSM-025-U908-xx/X |
