Through-hole soldering (THT) – vertical pin headers
SLx-xxx-Xxxx/x-xx/xx

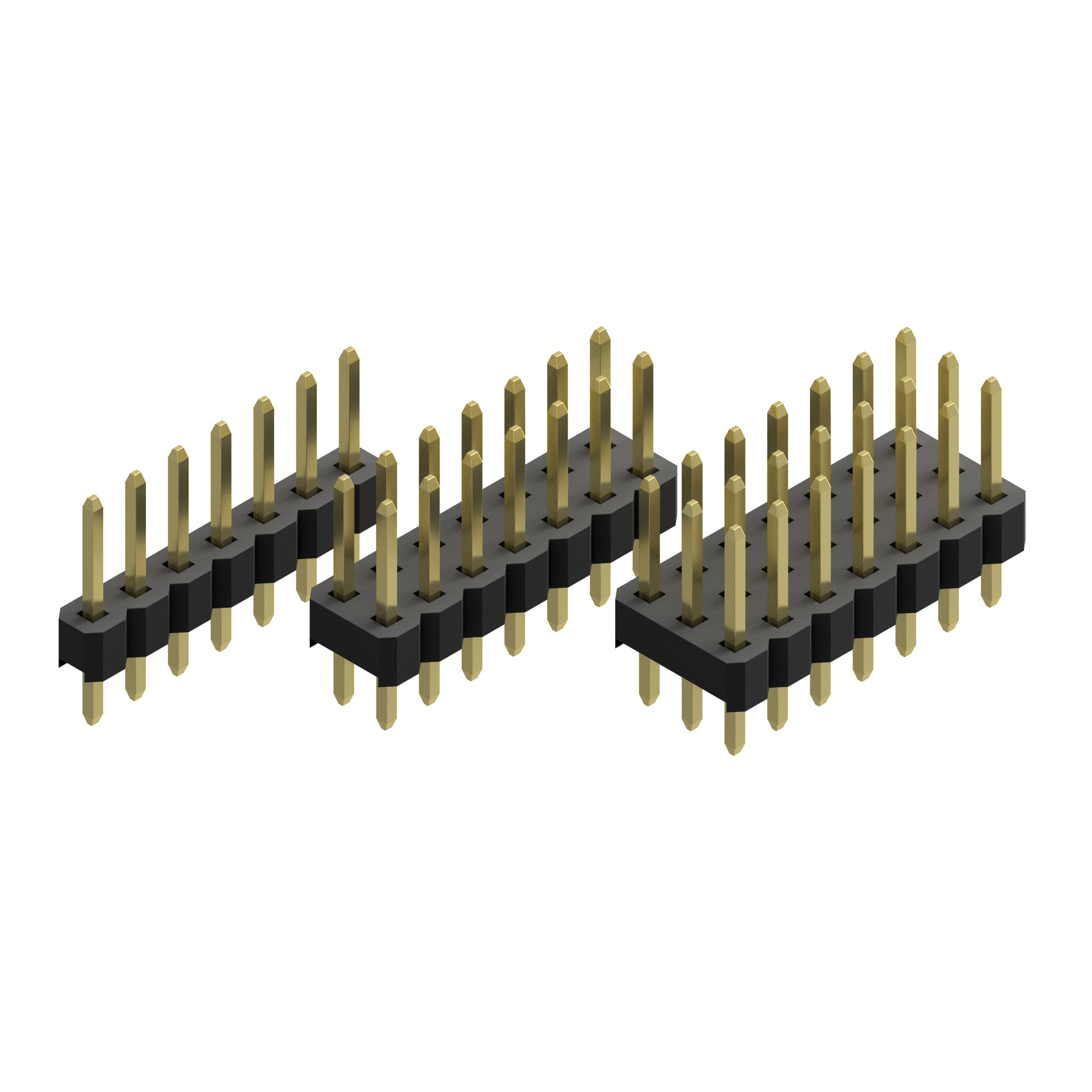

Single row, double row and three rows with a variety of standard dimensions of the soldering and plug side. Obviously, customer-specific dimensions are possible. Details and dimensions applied for your “Design-In” you will find on the pages with “additional data”.
| Pitch | 1.27mm (single and double row), 1.00mm, 1.27mm (single row), 1.27mm x 2.54mm, 2.00mm, 2.54mm, 5.08mm |
|---|---|
| Number of contacts | 2 to 40 |
| Type | SMT, THT |
| Connection type | Pin |
| Design | vertical |
| Comtact material | Copper Alloy, Phosphor bronze |
| Current carrying capacity | 1A |
| Voltage withstand capability | 250V |
| Waterproof | No |
| Pitch | Artikelnummer | Downloads |
|---|---|---|
| 1.00mm | SL2-xxx-Sxxx/x-xx/00 | |
| 1.27mm (single row) | SLx-xxx-S0xx/x-xx/11 | |
| 1.27mm (single and double row) | SL1-xxx-B083/x-xx/11 | |
| 1.27mm x 2.54mm | SLx-xxx-Sxxx/xx-xx/1 | |
| 2.00mm | SLx-xxx-Xxxx/xx-xx/2 | |
| 2.54mm | SLx-xxx-SXxxx/xx-xx | |
| 5.08mm | SL1-xxx-Sxxx/xx-xx/5 |
