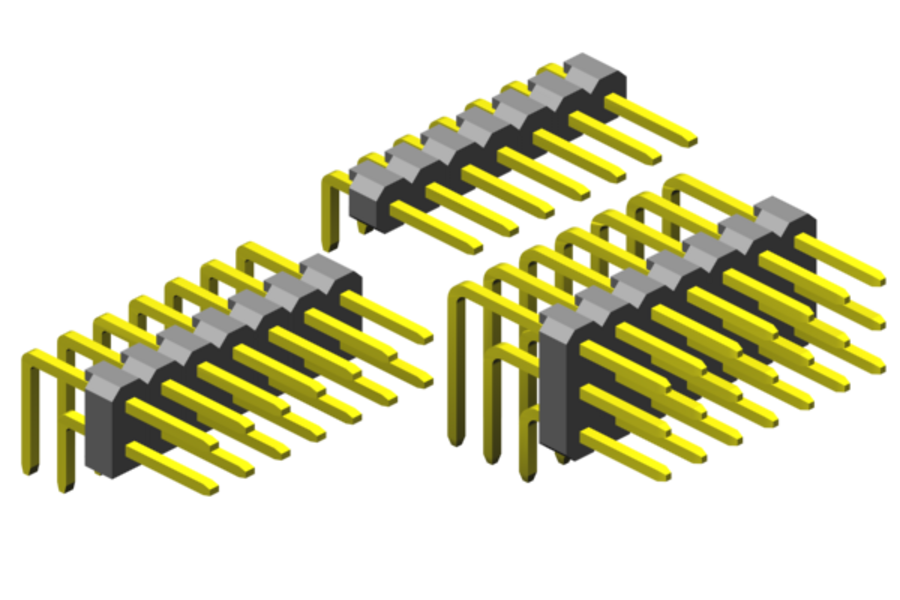

Through-hole soldering (THT) – horizontal pin headers
SLx-xxx-Rxxx/x-xx/xx
Single row, double row and three rows with a variety of standard dimensions of the soldering and plug side. Obviously, customer-specific dimensions are possible. Details and dimensions applied for your “Design-In” you will find on the pages with “additional data”.
| Pitch | 1.27mm, 1.27mm x 2.54mm, 2.00mm, 2.54mm |
|---|
| Pitch | Artikelnummer | Downloads |
|---|---|---|
| 1.27mm | SLx-xxx-R071/x-xx/11 | |
| 1.27mm x 2.54mm | SL2-xxx-Rxxx/xx-xx/1 | |
| 2.00mm | SLx-xxx-Rxxx/xx-xx/2 | |
| 2.54mm | SLx-xxx-Xxxx/xx-xx |
